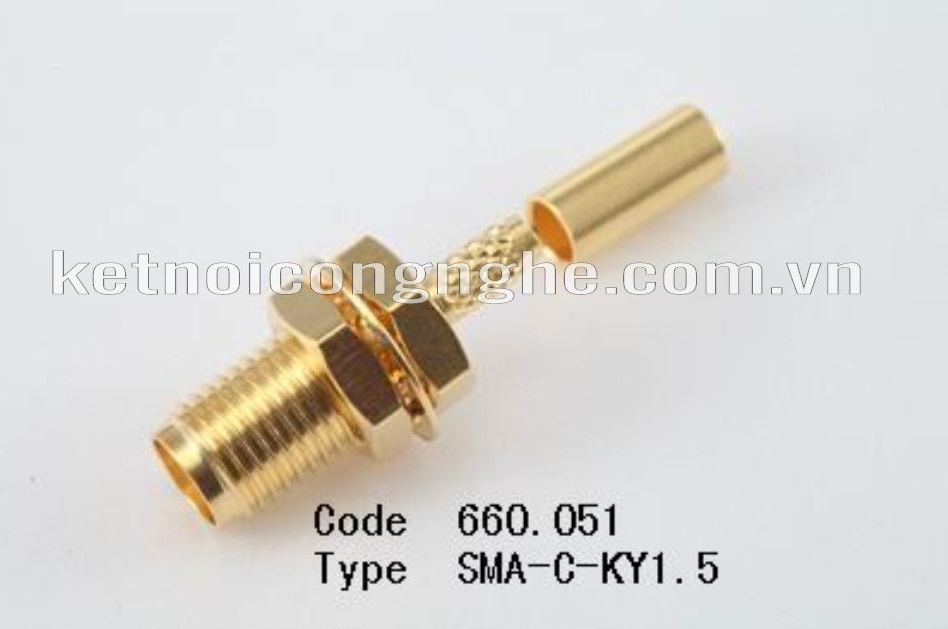

SMA FEMALE FOR RG174, RG316: SMA cái, kim cái RG174 có đai SMA-C/KY1.5

- Tên sản phẩm: SMA cái, kim cái RG174 có đai, mã SMA-C/KY1.5

- Chất liệu: thân đồng mạ vàng.  Trở kháng 50 ohm

- Thông số kỹ thuật:

Temperature range : -55+155 °C (PE cable -40~+85 °C)
Vibration: 98m/S²(10~2000 Hz)10 g
Impedance: 50 ohm
Frequency Range:  DC~12.4GHz ( Semi- rigled Cable  DC-18 GHz)
Working Voltage: 335V r.m.s at see level.
Withstanding Voltage: 1000V r.m.s at see level.
Contact resistance:
center contact: ≤ 3m Ω
outer contact: ≤ 2.5m Ω
Insulation resistance::≥ 5000M Ω
Center conductor retention force:≥0.28N
Coupling nut retention force:≥180N
Insertion Loss:   ≤ 0.15dB/6GHz
Durability ( mating): ≥ 500 cycles.
