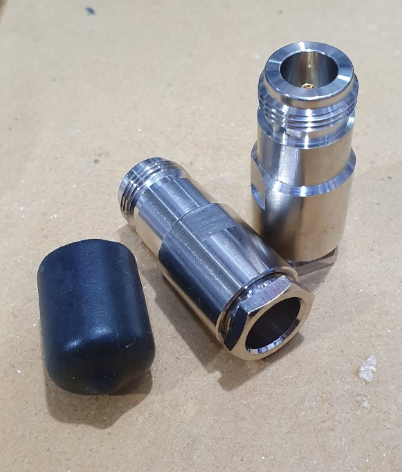

NK8D - N FEMALE FOR RG8 CABLE- N CÁI CÁP 8

Temperature range : -55+155 °C (PE cable -40~+85 °C)
Vibration: 100m/S²(10~500 Hz)10 g
Impedance: 50 ohm
Frequency Range:  DC~11GHz
Working Voltage: 1000V r.m.s at see level.
Withstanding Voltage: 2500V r.m.s at see level.
Contact resistance:
center contact: ≤ 1m Ω
outer contact: ≤ 1m Ω
Insulation resistance::≥ 5000M Ω
Center conductor retention force:≥0.56N
Coupling nut retention force:≥180N
Insertion Loss:   ≤ 0.15dB/6GHz
Durability ( mating): ≥ 500 cycles.
vật liệu và mạ: jack  thân đồng mạ nikel. kim đồng mạ vàng
lớp cách điện: PTFE, vòng chống nước: Cao su silicon
