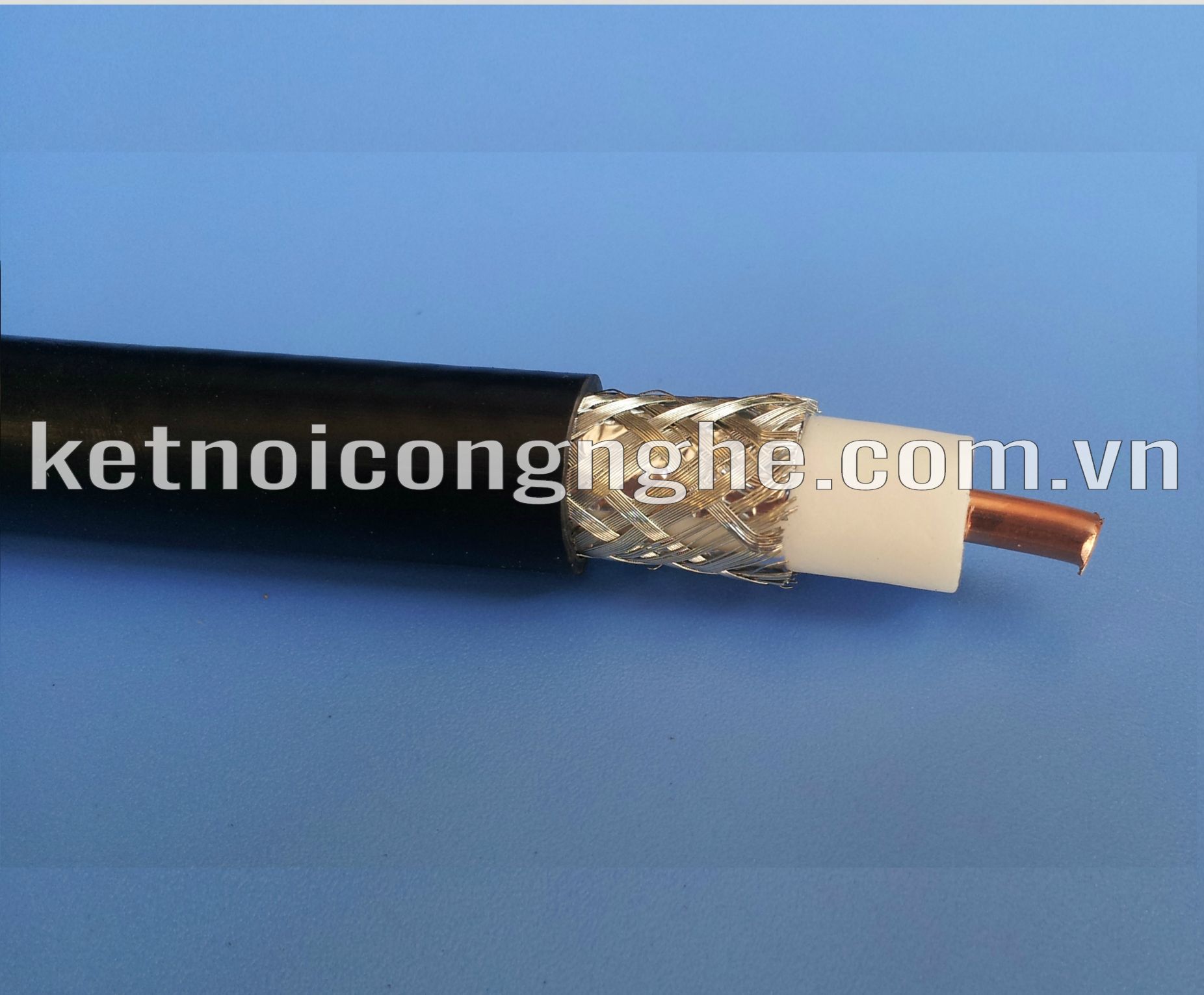

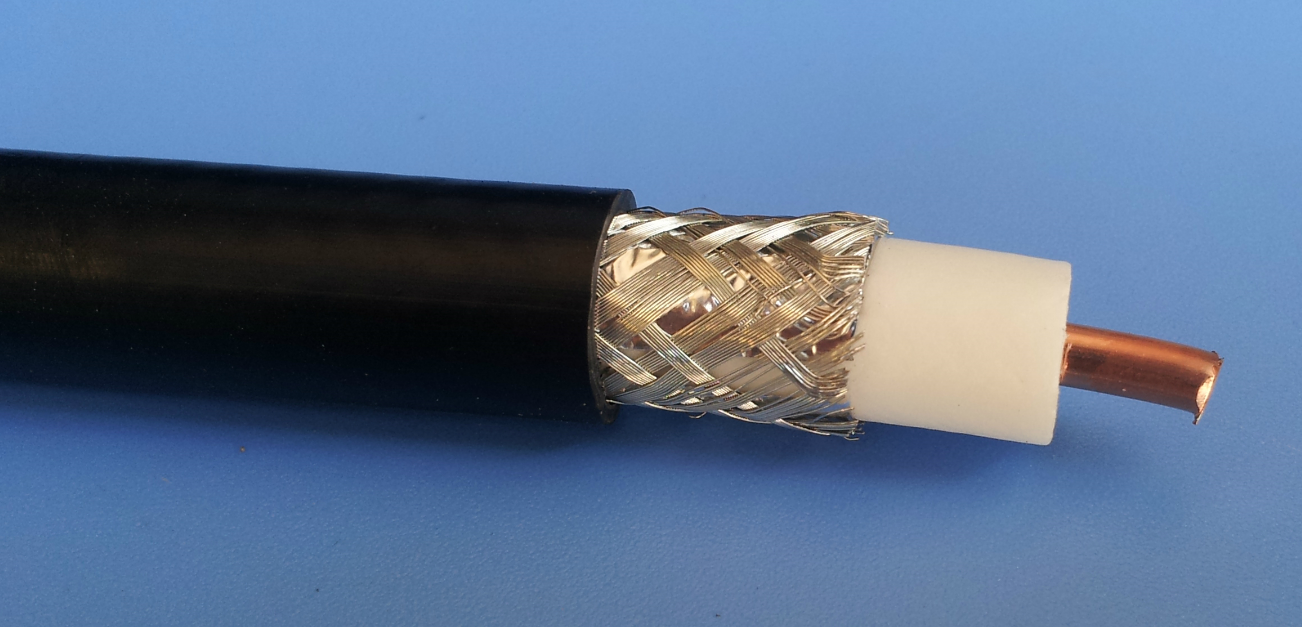

| 10D-FB RF COAXIAL CABLE: | |||||
| ( 10D-FB CCA 25% CU FPE 95% TC 13.00 PE ) | |||||
|
|||||
| Inner Conductor | 3.50mm Copper Clad Aluminum | ||||
| Dielectric | 10.00mm Foamed Polyethylene | ||||
| Shield 1 | Bonded Aluminum Foil | ||||
| Shield 2 | 192 x 0.16mm Tinned Copper | ||||
| Coverage | 95% | ||||
| Jacket | 13.00mm PE Black | ||||
| Electrical Characteristics: | |||||
| Capacitance | 84 pF/m | ||||
| Impedance | 50 Ω | ||||
| Return loss | between 5 and 3000MHz: > 22dB | ||||
| Velocity of Propagation | 80% | ||||
| Conductor DCR | 2.80 Ohm/km | ||||
| Max Operating Voltage | 3000V | ||||
| Operating Temp Range (PVC) | -20 ℃ to 70℃ | ||||
| Attenuation(20℃): | |||||
| Frequency (MHZ) | Max Attenuation (dB/100ft) | Max Attenuation (dB/100m) | |||
| 100 | 1.05 | 3.20 | |||
| 150 | 1.31 | 4.00 | |||
| 400 | 2.23 | 6.80 | |||
| 800 | 3.34 | 10.20 | |||
| 900 | 3.61 | 11.00 | |||
| 1200 | 4.30 | 13.10 | |||
| 1500 | 4.92 | 15.00 | |||
| 2000 | 5.90 | 18.00 | |||
| 2500 | 6.72 | 20.50 | |||
| 3000 | 7.70 | 23.50 | |||
| Order Informations: | |||||
| Marking | CABLE KING 10D-FB CCA 25% CU FPE 95% TC PE RF COAXIAL CABLE XXX M | ||||
| Package | 305M/Wooden Drum. | ||||
