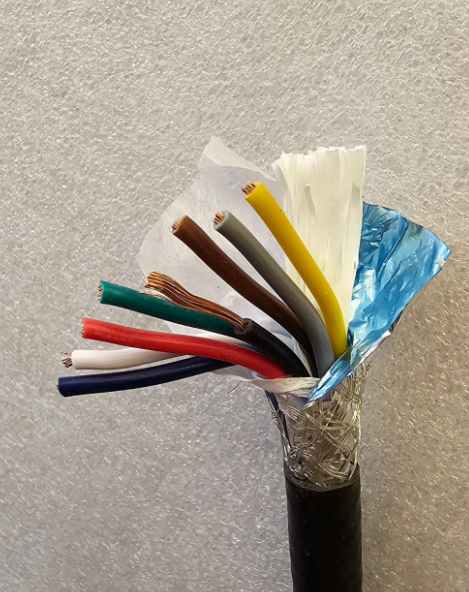

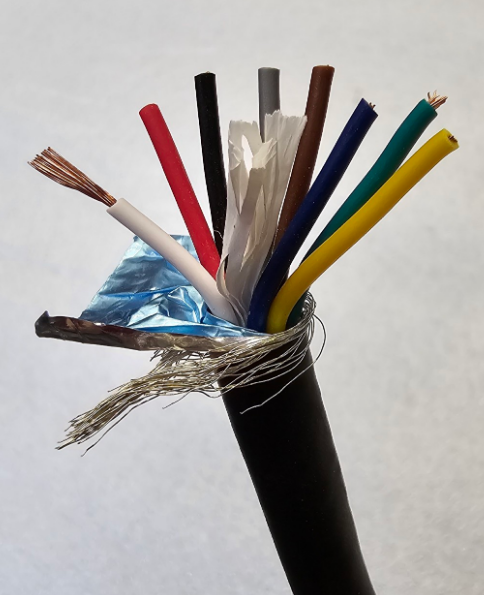

| 4x0.75mm2 SIGNAL CABLE: HTK-475 CABLE KING | |||||
| ( Signal 4x0.75mm2 CU 99.99% Braid 80% Copper 7.60 PVC ) | |||||
|
|||||
| Inner Conductor | 4 x 24/0.20mm Bare Copper | ||||
| Dielectric | 4 x 2.00mm PVC | ||||
| Shield 1 | PET / Aluminum Foil | ||||
| Shield 2 | 128 x 0.12mm Bare Copper | ||||
| Coverage | 80% | ||||
| Jacket | 7.60mm PVC Black | ||||
| Application | For Use in computer systems or automatic connection | ||||
| Electrical Characteristics: | |||||
| Rated Voltage | 300/300V | ||||
| Max Operating Voltage | 1500V | ||||
| Operating Temp Range (PVC) | -25 ℃ to 70℃ | ||||

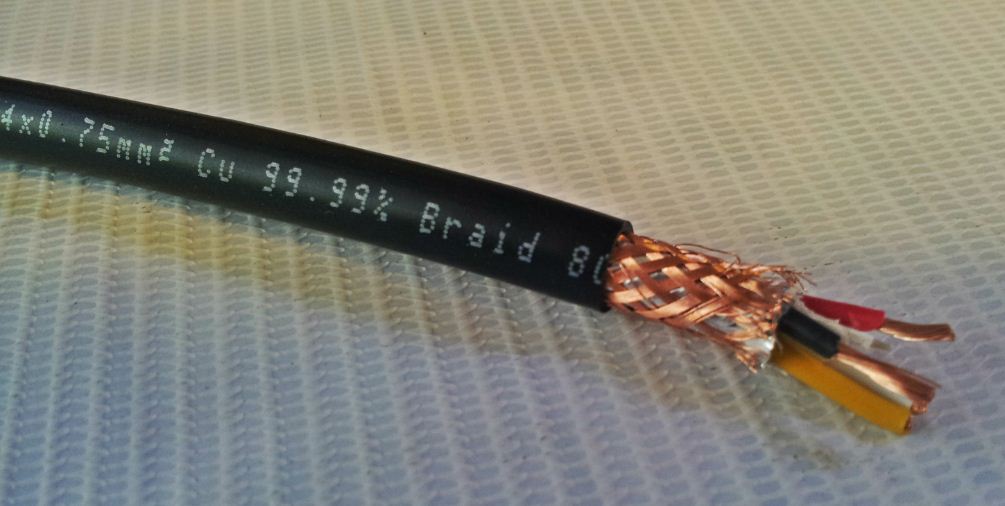

| Marking | CABLE KING Signal Cable 4x0.75mm2 CU 99.99% Braid 80% Copper XXX M | ||||
| Package | 305M/Wooden Drum. | ||||
| Delivery time | Normally 20-25 days after received the deposit. | ||||
| More informations | Please contact with us. | ||||
