NYS373-2

Mã sản phẩm:

Xuất xứ :
Mô tả :

Thông tin chi tiết

NYS373-*

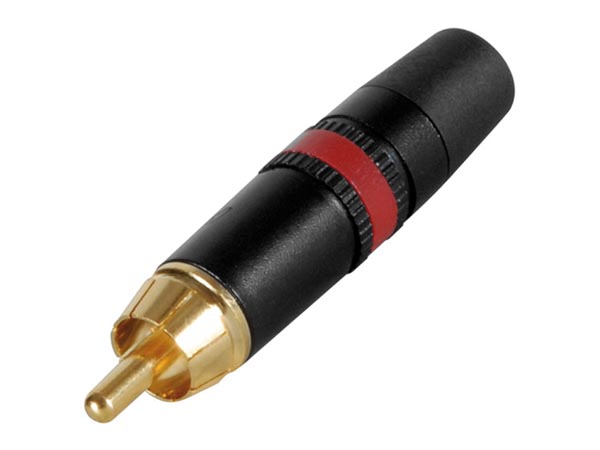

Phono plug with gold plated contacts, black shell, rubber boot for best antikink protection, chuck type strain relief for cable O.D. 4 to 6mm, color marking ring

2-Red





Product
Connector Type Plug
Gender male
Electrical
Contact resistance < 10 mΩ
Dielectric strength 0,5 kVdc
Rated current per contact depends on mated connector A
Mechanical
Cable O.D. ≤ 6 mm
Insertion force ≤ 20 N
Withdrawal force > 5 N
Lifetime 1000 mating cycles
Wire size 24 AWG
RW / Straight no
Material
Bushing PVC
Contact plating 0.2 µm Au
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1) Black
Strain relief Internal plastic chuck
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
