NYS325

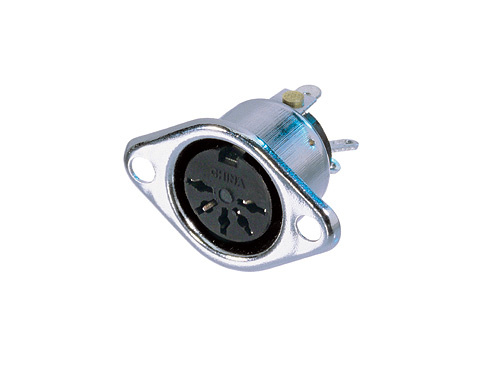

DIN female chassis connector, 5-pole, silver plated contacts





Product
Connector Type DIN
Gender female
Electrical
Contact resistance < 10 mΩ
Dielectric strength 0,5 kVdc
Rated current per contact 2 A
Mechanical
Insertion force ≤ 35 N
Withdrawal force > 5.5 N
Lifetime 1000 mating cycles
RW / Straight no
Material
Contact plating 2 µ Ag
Contacts Bronze (CuSn6)
Insert PBT
Shell Steel gal 2 µ Ni plated
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
